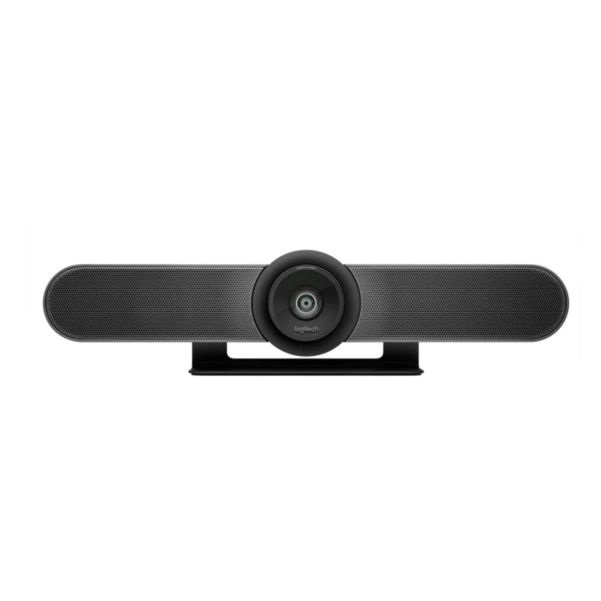

Camera Web Logitech MeetUp Conference (4K Bluetooth)

Specification
Main unit
– Height: 104 mm
– Width: 400 mm
– Depth: 85 mm
– Weight: 1.04 kg
Remote Control
– Height: 83 mm
– Width: 83 mm
– Depth: 10 mm
System Requirements
– Windows 10, Windows 11 or later
– The two latest versions of macOS
– USB 2.0 port (USB 3.0 Port and cable required for 4K video)
RIGHTSENSE TECHNOLOGIES
– Advanced technologies and design innovations that make video collaboration easy and automatic.
RightLight
– Low-light compensation
– Video noise reduction
– Low-light saturation optimization
RightSight
– Human figure detection
– Auto-frame participants at meeting start
– Auto-frame participants on-demand
– Auto-reframe when participants enter, leave, or change positions
RightSound
– Machine learning AI trained to distinguish human speech from other sounds
– AEC (Acoustic Echo Cancellation)
– VAD (Voice Activity Detector)
– Background noise suppression
– Auto-level loud and soft voices
– Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
– Anti-vibration enclosure
COMPATIBILITY AND INTEGRATIONS
Plug-and-play USB connectivity
Certifications
– Certified for Skype™ for Business and ready for Teams
– Zoom™ Certified
– Tencent Certified
– Certified for Google Hangouts Meet Hardware
Compatibility
– RingCentral: q
– Microsoft Cortana
– Cisco Jabber®
– BlueJeans
– BroadSoft™
– Vidyo™
– and other video conferencing, recording, and broadcasting applications that support USB cameras TAA compliant. For applicable part numbers, visit www.logitech.com/support/meetup-taa-compliance
Technical Specifications
Camera
– Custom Logitech lens with 5x HD zoom and motorised pan (+/- 25°) and tilt (+/- 15°)
– Field of View: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
– Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
– 3 camera position presets
– RightSight auto-framing: Requires Windows 10 64-bit or macOS 10.14 or higher
Video Performance
– 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
– 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
– 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)
Microphone
– Integrated microphone with 3 beamforming elements
– Pickup Range
– MeetUp: 4 m
– With optional Expansion Mic: 5 m
– Sensitivity: -27 dB
– Microphone frequency response: 90Hz-16KHz for full voice reproduction and high intelligibility without noise
– Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
– AEC (Acoustic Echo Cancellation)
– VAD (Voice Activity Detector)
– Microphone background noise suppression
– Microphone date rate: 32KHz sampling rate
– Recommended # of participants: 6
– Recommended # of participants with expansion mic: 8
Speaker
– Volume adjustable to 95 dB SPL at 1/2 meter peak
– Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
– Distortion: 200-300Hz < 3%, 3000 Hz -10KHz < 1% - Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces General
– Bluetooth wireless technology
– RF remote control
– Integrated table/wall mount; optional TV mount available
– Kensington security slot
Package Contents
– MeetUp ConferenceCam
– Remote control
– USB 2.0 cable: 5 m
– Power supply
– Wall mount and hardware
– User documentation
Part Number
– 960-001102
