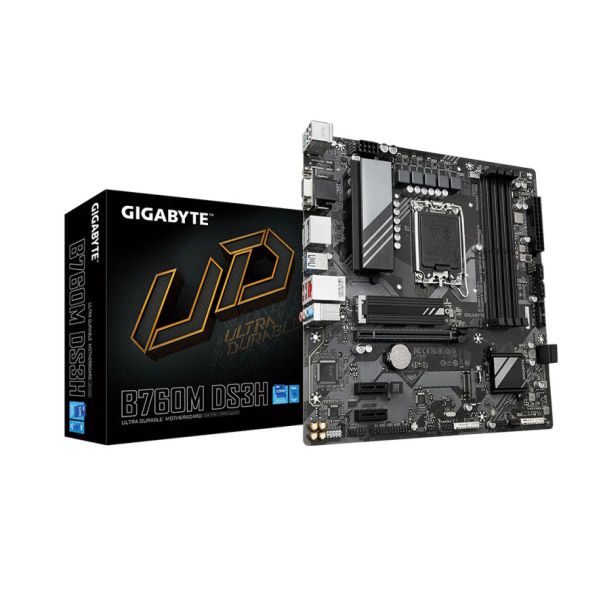

MB Gigabyte B760M DS3H LGA1700 DDR5 7600MHz OC SATA3 2xM.2 USB3.2/Type-C PCIe 4.0 VGA/HDMI/2xDP

Specifications
– CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
– L3 cache varies with CPU
– Chipset: Intel® B760 Express Chipset
– Memory: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
– 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
– Dual channel memory architecture
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz km
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz *Support for up to quad-display at the same time
– Audio: Realtek® Audio CODEC
– High Definition Audio
– 2/4/5.1/7.1-channel
– LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
– CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
– Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface
– CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
– Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors
USB
– Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
– 2 x USB 2.0/1.1 ports on the back panel
– Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 1 x CPU fan header
– 3 x system fan headers
– 1 x addressable LED strip header
– 1 x RGB LED strip header
– 2 x M.2 Socket 3 connectors
– 4 x SATA 6Gb/s connectors
– 1 x front panel header
– 1 x front panel audio header
– 1 x USB 3.2 Gen 1 header
– 2 x USB 2.0/1.1 headers
– 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
– 1 x serial port header
– 1 x parallel port header
– 1 x S/PDIF Out header
– 1 x Q-Flash Plus button
– 1 x reset jumper
– 1 x Clear CMOS jumper
Back Panel Connectors
– 2 x USB 2.0/1.1 ports
– 1 x PS/2 keyboard/mouse port
– 1 x D-Sub port
– 1 x HDMI port
– 2 x DisplayPorts
– 3 x USB 3.2 Gen 1 ports
– 1 x USB Type-C® port, with USB 3.2 Gen 2 support
– 1 x RJ-45 port
– 3 x audio jacks
– I/O Controller: iTE® I/O Controller Chip
– Operating system: Windows 11 64-bit, Windows 10 64-bit
– Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
