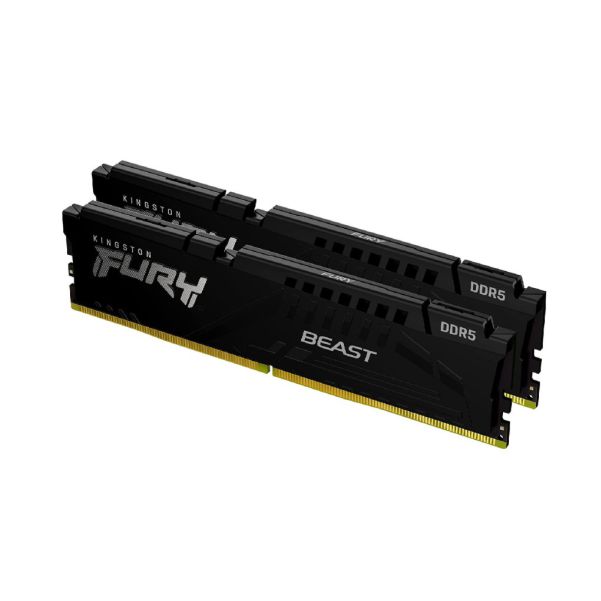

DIMM 64GB DDR5 5600MHz Kingston Fury Beast Kit CL40 (2×32)

DESCRIPTION
– Kingston FURY KF556C40BBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
FACTORY TIMING PARAMETERS
– Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
– XMP Profile #1: DDR5-5600 CL40-40-40 @1.25V
– XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V
– XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
SPECIFICATIONS
– CL(IDD) – 40 cycles
– Row Cycle Time (tRCmin) – 48ns(min.)
– Refresh to Active/Refresh Command Time (tRFCmin) – 295ns(min.)
– Row Active Time (tRASmin) – 32ns(min.)
– UL Rating – 94 V – 0
– Operating Temperature – 0°C to +85°C
– Storage Temperature – -55°C to +100°C
FEATURES
– Power Supply: VDD = 1.1V Typical
– VDDQ = 1.1V Typical
– VPP = 1.8V Typical
– VDDSPD = 1.8V to 2.0V
– On-Die ECC
– Height 1.37” (34.9mm), w/heatsink
