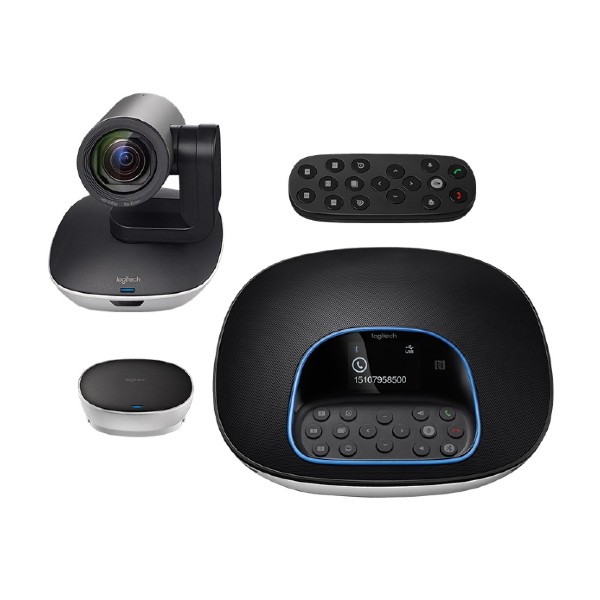

Camera Web Logitech Group Video Conferencing Kit

Technical Specifications
Camera
– Smooth motorized pan, tilt and zoom controlled from remote or console
– Pan +/- 90°
– Tilt +35° / -45
– 10x lossless HD zoom
– Field of View
– Diagonal: 90°
– Horizontal: 82.1°
– Vertical: 52.2°
– Full HD 1080p 30fps
– H.264 UVC 1.5 with Scalable Video Coding (SVC)
– Autofocus
– 5 camera presets
– Far-end control (PTZ) of ConferenceCam product (with supported services)
– Kensington security slot
– Video mute/unmute LED indicator
– Standard tripod thread
Remote Control
– Camera, speakerphone, and call control
– 5 camera presets
– Docks on speakerphone
– IR 8.5 m range
– CR2032 battery (included)
SPEAKERPHONE
– Full-duplex performance
– Acoustic echo cancellation
– Noise reduction technology
– Ultra-wideband audio
– Pairs with mobile devices via Bluetooth and NFC
– LCD for caller ID, call duration and other functional response
– LEDs for speakerphone streaming, mute, hold, and Bluetooth
– Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
– 5 camera presets for pan, tilt, and zoom settings
– Kensington security slot
Microphones
– Pickup Range: 6 m
– Pickup range with expansion mics: 8.5 m
– Four omnidirectional, beamforming microphones
– Frequency Response: 100Hz – 11KHz
– Sensitivity: -28 dB +/-3dB
– Distortion: 5% from 200Hz
HUB / CABLES / POWER
– Central Hub connects and powers all components
– Under-table mounting adhesive included
– One cable to camera: 5 m
– One cable to speakerphone: 5 m
– Extended cables available: 10 and 15 m
– One USB cable for connection to PC/Mac: 2 m
– AC Power adapter with regional plugs
– Power cable: 3 m
MOUNT
– Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND CERTIFICATIONS
– Plug-and-play USB connectivity
– Certified for Skype for Business and ready for Teams
– Fuze® Certified
– Microsoft Cortana
– Cisco Jabber®
– Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
Package Contents
– Camera
– Speakerphone
– Remote control
– Two 5m cables for connection between speakerphone and hub and camera and hub
– One 2m meter cable between hub and PC
– Velcro for cable management
– Velcro for hub to table securing
– Powered hub
– Power adapter with regional plugs and 3m
– Mount
– Documentation
SPECIFICATIONS
Camera
– Height: 130 mm
– Width: 170 mm
– Depth: 138 mm
– Weight: 585 g
SPEAKERPHONE
– Height: 240 mm
– Width: 65 mm
– Depth: 240 mm
– Weight: : 1223 g
Hub
– Height: 94 mm
– Width: 34 mm
– Depth: 74 mm
– Weight: 83 g
Remote
– Height: 50 mm
– Width: 120 mm
– Depth: 12 mm
– Weight: 51 g
Wall/Table Mount
– Height: 210 mm
– Width: 120 mm
– Depth: 99 mm
– Weight: 255 g
Expansion Mics (Optional)
– Height: 83 mm
– Width: 83 mm
– Depth: 21 mm
– Weight: 230 g
System Requirements
– Windows® 7, 8.1 or 10
– macOS 10.10 or later
PART NUMBER
– 960-001057
