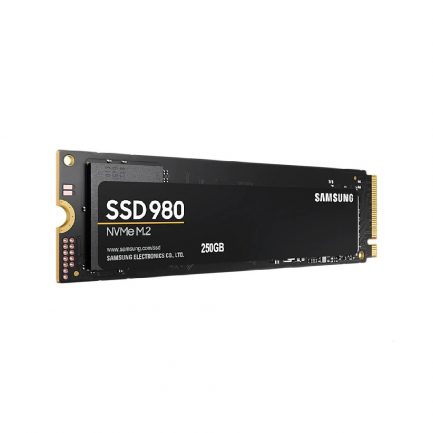

SSD M.2 Samsung NVMe 980 250GB PCIe 3.0 x4

General Feature
– Application: Client PCs
– Capacity: 5250GB (1GB=1 Billion byte by IDEMA) *Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
– Form Factor: M.2 (2280)
– Interface: PCIe Gen 3.0 x4, NVMe 1.4
– Dimension (Pack: WxHxD): 80.15 x 22.15 x 2.38 (mm)
– Weight: Max 8.0g
– Storage Memory: Samsung V-NAND 3-bit MLC
– Controller: Samsung Pablo Controller
– Cache Memory: HMB(Host Memory Buffer)
Special Feature
– TRIM Support: Supported
– S.M.A.R.T Support: Supported
– GC (Garbage Collection): Auto Garbage Collection Algorithm
– Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
– WWN Support: Not supported
– Device Sleep Mode Support: Yes
Performance
– Sequential Read: Up to 2,900 MB/s *Performance may vary based on system hardware & configuration
– Sequential Write: Up to 1,300 MB/s *Performance may vary based on system hardware & configuration
– Random Read (4KB, QD32): Up to 230,000 IOPS *Performance may vary based on system hardware & configuration
– Random Write (4KB, QD32): Up to 320,000 IOPS *Performance may vary based on system hardware & configuration
– Random Read (4KB, QD1): Up to 17,000 IOPS *Performance may vary based on system hardware & configuration
– Random Write (4KB, QD1): Up to 54,000 IOPS *Performance may vary based on system hardware & configuration
Environment
– Average Power Consumption (system level): *Average: 3.7W *Maximum: 5.6W (Burst mode) *Actual power consumption may vary depending on system hardware & configuration
– Power consumption (Idle): Max. 45 mW *Actual power consumption may vary depending on system hardware & configuration
– Allowable Voltage: 3.3V ± 5% Allowable voltage
– Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
– Operating Temperature: 0 – 70℃ Operating Temperature
– Shock: 1,500 G & 0.5ms (Half sine)
Accessories
– Installation Kit: Not Available
Software
– Management SW: Magician Software for SSD management
